BALTUR BURNER INDUSTRIAL ENERGY

BALTUR BURNER

BALTUR BURNER INDUSTRIAL ENERGY

Supplyer  Baltur Gas Burner TBG

The TBG Baltur Burner Sales Center in Indonesia sells TBG type Baltur burners with various series that use gas fuel, our company is a company in boiler fabrication that also sells Baltur burners at the best prices and guaranteed authenticity of goods.

For the Baltur burner itself, it is an Italian licensed burner and the performance of the Baltur burner has been tested in various major industrial areas in Indonesia. in the TBG burner type, the fire power temperature is from 80-600 kw for the Baltur type TBG and how many series are there in the TBG burner at a glance, we will discuss it below.

BTL. Single-stage light oil burners.
Single-stage light oil burners.
  • Single-stage.
  • Mechanical pulverization.

KNOW MORE

BTL P. Two-stage light oil burners.
BTL P
Two-stage light oil burners.
  • Two-stage.
  • Mechanical pulverization.

KNOW MORE

BT DSG 4T. Two-stage light oil burners.
BT DSG 4T
Two-stage light oil burners.
  • Two-stage.
  • Mechanical pulverization.

KNOW MORE

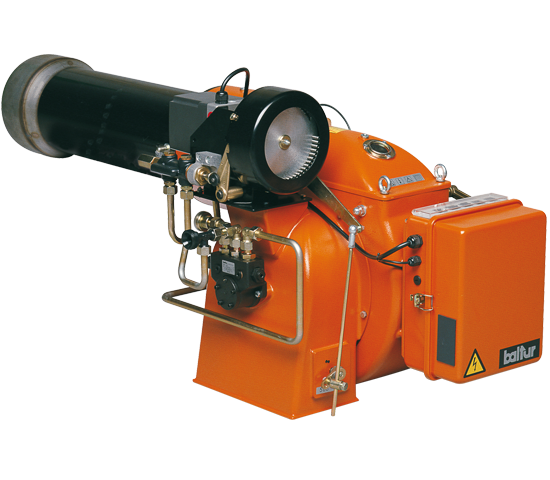

BT DSPG. Progressive/modulating two-stage light oil burners.
BT DSPG
Progressive/modulating two-stage light oil burners.
  • Two-stage.
  • Mechanical pulverization.
  • Return nozzle with closure by means of a rod commanded by electromagnets.

KNOW MORE

TBL. Two-stage light oil burners.
TBL
Two-stage light oil burners.
  • Two-stage.
  • Mechanical pulverization.

KNOW MORE

TBL P. Two-stage light oil burners.
TBL P
Two-stage light oil burners.
  • Two-stage.
  • Mechanical pulverization.

KNOW MORE

TBL LX. Two-stage light oil burners with low polluting emissions (class 3).
TBL LX
Two-stage light oil burners with low polluting emissions (class 3).
  • Two-stage.
  • Mechanical pulverization.
  • Low NOx emissions.

KNOW MORE

TBL ME.
TBL ME

KNOW MORE

BTL. Single-stage light oil burners.

Series BTL

Single-stage light oil burners.

  • Single-stage.
  • Mechanical pulverization.

PRODOTTI DI QUESTA SERIE:

Product code
Name
Minimum Thermal Power (kW) to ErP
Maximum Thermal Power (kW) to ErP
BTL 3 H 50-60Hz
35450011
BTL 3 H 50-60Hz
16.6
42.7
SHOW
BTL 3 50-60Hz
35450010
17.8
42.7
BTL 3 L200
35450020
17.8
42.7
BTL 4 50-60Hz
35490010
26
56.1
BTL 4 H 50-60Hz
35490011
26
56.1
BTL 4 L200
35490020
26
56.1
BTL 6 50-60Hz
35510010
31.9
74.3
BTL 6 H 50-60Hz
35510011
31.9
74.3
BTL 6 L275
35510020
31.9
74.3
BTL 10 50-60Hz
35530010
60.2
118
BTL 10 H 50-60Hz
35530011
60.2
118
BTL 10 L250
35530020
60.2
118
BTL 14 50Hz
35610010
83
166
BTL 14 60Hz
35615410
83
166
BTL 20 50Hz
35630010
118.6
261
BTL 20 60Hz
35635410
118.6
261
BTL 26 50Hz
35650010
190
310
BTL 26 60Hz
35655410
190
310
BTG. Single-stage gas burners.
Single-stage gas burners.
  • Single-stage (on/off).

KNOW MORE

BTG P. Two-stage gas burners.
Two-stage gas burners.
  • Two-stage.

KNOW MORE

BTG ME. Progressive/modulating two-stage gas burners with electronic cam.
Progressive/modulating two-stage gas burners with electronic cam.
  • Two-stage progressive.
  • Electronic modulating control.

KNOW MORE

TBG. Single-stage gas burners.
Single-stage gas burners.
  • Single-stage (on/off).

KNOW MORE

PRODOTTI DI QUESTA SERIE:

BTG P. Two-stage gas burners.

Series BTG P

Two-stage gas burners.

  • Two-stage.
Product code
Name
Minimum Thermal Power (kW) to ErP
Maximum Thermal Power (kW) to ErP
BTG 3,6 P 50-60Hz
17030010
16.3
41.9
BTG 6 P 50-60Hz
17050010
30.6
56.3
BTG 6 P L300 50-60Hz
17050020
30.6
56.3
BTG 11 P 50-60Hz
17070010
48.8
99
BTG 11 P L300 50-60Hz
17070020
48.8
99
BTG 15 P 50-60Hz
17090010
50
160
BTG 20 P 50-60Hz
17110010
60
205
BTG 28 P 50Hz
17150010
80
280
BTG 28 P 60Hz
17155410
80
280

TBG and how many series are there in the TBG Baltur burner at a glance, we will discuss it below, the Baltur Series Type Burner single stage Series Type Burner Baltur

singel stage TBG 35 60HZ (capacity power 80 –410 KW )
singel stage TBG 45 50HZ (capacity Power 100–450 KW )
singel stage TBG 45 60HZ (capacity Power 100–450 KW )
singel stage TBG 60 50HZ (capacity Power 120–600 KW )
singel stage TBG 60 60HZ (capacity Power 120–600 KW )

Two stage

Two stageTBG 35 P 60HZ (capacity power 80–410 KW )
Two stageTBG 45 P 50HZ (capacity Power 100–450 KW )
Two stageTBG 45 P 60HZ (capacity Power 100–450 KW )
Two stageTBG 60 P 50HZ (capacity Power 120–600 KW )

Two stage TBG 60 P 60HZ (capacity Power 120–600 KW )
Two stage TBG 85 P 50HZ (capacity Power 170–850 KW )
Two stage TBG 85 P 60HZ (capacity Power 170–850 KW )
Two stage TBG 120 P 50HZ (capacity Power 240–1200 KW )
Two stage TBG 120 P 60HZ (capacity Power 240–1200 KW )
Two stage TBG 150 P 50HZ (capacity Power 300–1500 KW )
Two stage TBG 150 P 60HZ (capacity Power 300–1500 KW )
Two stage TBG 210 P 50HZ (capacity Power 400–2100 KW )
Two stage TBG 210 P 60HZ (capacity Power 400–2100 KW )

Two stage Progressive  TBG 35 PN 50HZ (capacity power 80–410 KW )
Two stage Progressive TBG 35 PN 60HZ (capacity power 80–410 KW )
Two stage Progressive TBG 45 PN 50HZ (capacity Power 100–450 KW )
Two stage Progressive TBG 45 PN 60HZ (capacity Power 100–450 KW )
Two stage Progressive TBG 60 PN 50HZ (capacity Power 120–600 KW )

Two stage Progressive TBG 85 PN 50HZ (capacity Power 170–850 KW )

Economic boiler grate stoker Two stageProgressive

Two stage ProgressiveTBG 60 PN 60HZ (capacity Power 120–600 KW )

Two stage ProgressiveTBG 45 PN 50HZ (capacity Power 100–450 KW )

Two stage Progressive TBG 60 PN 50HZ (capacity Power 120–600 KW )
Two stage Progressive TBG 85 PN 50HZ (capacity Power 170–850 KW )
Two stage Progressive TBG 85 PN 60HZ (capacity Power 170–850 KW )
Two stage Progressive TBG 120 PN 50HZ (capacity Power 240–1200 KW )
Two stage Progressive TBG 120 PN 60HZ (capacity Power 240–1200 KW )
Two stage Progressive TBG 150 PN 50HZ (capacity Power 300–1500 KW )
Two stage Progressive TBG 150 PN 60HZ (capacity Power 300–1500 KW )
Two stage Progressive TBG 210 PN 50HZ (capacity Power 400–2100 KW )

TBG 210 PN 60HZ (capacity Power 400–2100 KW )

Type Burner Baltur TBG PV

Two stageSeries (Type Burner Baltur ) Two stage
Two stage TBG 35 MC 60HZ (capacity power 80–410 KW )
Two stage TBG 45 MC 50HZ (capacity Power 100–450 KW )
Two stage TBG 45 MC 60HZ (capacity Power 100–450 KW )
Two stage TBG 60 MC 50HZ (capacity Power 120–600 KW )
Two stage TBG 60 MC 60HZ (capacity Power 120–600 KW )
Two stage TBG 85 MC 50HZ (capacity Power 170–850 KW )
Two stage TBG 85 MC 60HZ (capacity Power 170–850 KW )
Two stage TBG 120 MC 60HZ (capacity Power 240–1200 KW )
Two stage TBG 150 MC 50HZ (capacity Power 300–1500 KW )
Two stage TBG 150 MC 60HZ (capacity Power 300–1500 KW )
Two stage TBG 210 MC 50HZ (capacity Power 400–2100 KW )
Two stage TBG 210 MC 60HZ (capacity Power 400–2100 KW )
Two stage TBG 260 MC 50HZ (capacity Power 450–2600 KW )
Two stage TBG 260 MC 60HZ (capacity Power 450–2600 KW )
Two stage TBG 360 MC 50HZ (capacity Power 500–3600 KW )
Two stage TBG 360 MC 60HZ (capacity Power 500–3600 KW )
Two stage TBG 480 MC 50HZ (capacity Power 480–4800 KW )
Two stage TBG 480 MC 60HZ (capacity Power 480–4800 KW )
Two stage TBG 800 MC 50HZ (capacity Power 800–8000 KW )
Two stage TBG 800 MC 60HZ (capacity Power 800–8000 KW )
Two stage TBG 800 MC 50HZ (capacity Power 800–8000 KW )
Two stage TBG 1100 MC 50HZ (capacity Power 1000–11000 KW )
Two stage TBG 1100 MC 60HZ (capacity Power 1000–11000 KW )
Two stage TBG 1200 MC 50HZ (capacity Power 1200–12000 KW )

Main Parts of our Burners use International Famous BRAND:

1. SIEMENS : Program Controller, Servo Motor.

2. DUNGS : Valves Combination, Air Pressure Switch.

3. FIDA : Ignition Transformer.

4. SUNTEC : Oil Pump.

5. DANFOSS : Nozzle.

6. SUNTEC & SANLIXIN : Solenoid Valve.
